energy drink Irregular Shaped Bag Packing Machine
This machine is designed for special shape doypack,Full servo technology machine ,fast in packing, stable in operating, Durable machine with reasonable price. Flexible to fill and pack various product such as fruit juice,energy gel,energy drink and wolfberry original pulp. our machines already served in Food, beverage, cosmetics, personal care, household, chemicals and pharmaceutical industry.
Share This Product:

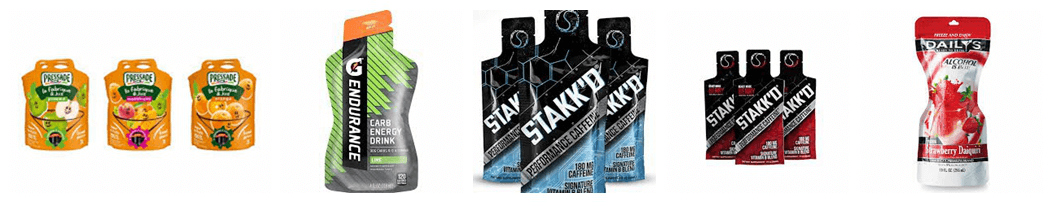

Pouch example
General Description
1. Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;
2. Intelligent: Packing speed and bag length can be set through the screen without part changes;
3. Profession: Independent temperature controller with heat balance enables different packing materials;
4. Characteristic: Automatic stop function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, easy for operation and maintenance.
6. Weighing accuracy 0.5 to 1.2 gram.

Servo Advance System
1.Easy Computerized Specification change
2.Big torquemoment of pouch advance
3.Stable Pouch advance with less deviation
Unique Piston Filler with Filling Nozzle
1.High filling accuracy
2.No drop after filling
3.High velocity
Light Walking Beam
1.Easy computerized specition change
2.Longer operational life span

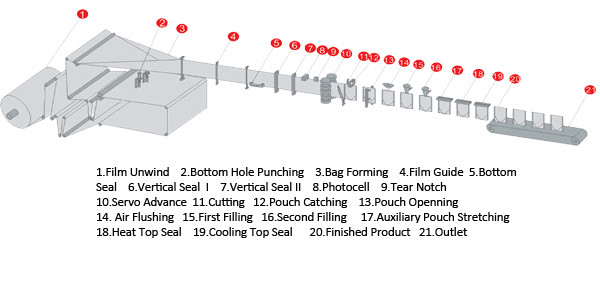

Machine Process
Main Components
Electrical and Pneumatic Components:
Please specify, if you require specified vendor to electrical and pneumatic components. If not, we will use our default vendor. You may ask us for our default vendor list.
Please note that cost may increase, if specified vendor is selected.

Main Components



Allan Bradley USA/Siemens/Mitsubishi

Touch Screen

Allan Bradley USA/Siemens/Mitsubishi


Siemens/Mitsubishi Japan

Servo Motor

Siemens/Panasonic Japan


Autonics Korea

Main Motor

ABB Switzerland

Pneumatic Parts

Festo German/SMC/CAMOZZ

Vacuum Generator

Festo German/SMC/CAMOZZ

Selected Configuration
Date code printer

Straight Line Cut with easy tear

Hole punching device

Auger screw Filler(for powder)

Volumetric Cup Filler(for granule)

Electrical Gear Pump(for liquid)

Piston Pump(for liquid or cream)

Packing Application
This machine is suitable for irregular shaped sachet standup pouch and flat bag,used in a wide range of applications and are suitable for many different industries,such as orange juice,tomato paste,fruit juice ,beverage,jelly, detergent,honey,fruit drink,energy drink,apple juice,TomatoSauce,Washing Liquid,Milk Beverage,Water,ketchup,peanut ketchup,jam,chili sauce,Juice ,yogurt, Fresh Milk, Chili Sauce,Viscosity Paste,Viscosity,oil,Mango Juice and more.
